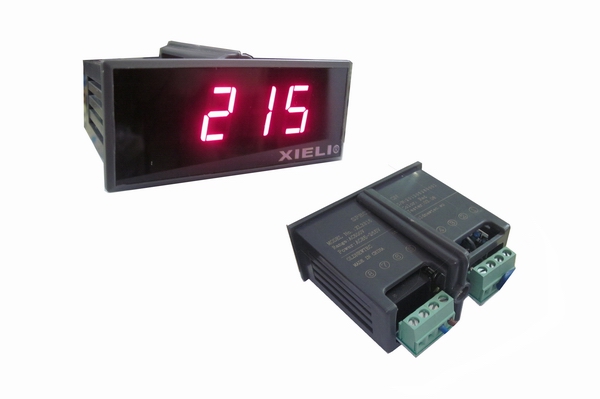

Introduction:XL3100 3½ DC Digital Voltmeter
Power Supply:AC220V±10%
Dimension(mm):W74×H32×D69
Tapping size(mm):70×28
Install method: Guide screw fixing
Maximum Count:1999(3 1/2 digit)
Display:Ultra-bright LED display
Color:Red,Blue,Green displays available
Character Height:15mm
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight:75~80g
Sample Frequency:400ms
|
Model
|
Digit display
|
Full measurement
|
Resolution
|
Accuracy
|
Input impedance
|
Max.input value
|
Power Supply
|
|
XL3111
|
3½
|
±199.9mV
|
100μV
|
±0.3 % +1Digit
|
100MΩ
|
±10V
|
AC 220V
|
|
XL3112
|
3½
|
±1.999V
|
1mV
|
±0.3 % +1Digit
|
100MΩ
|
±35V
|
AC 220V
|
|
XL3113
|
3½
|
±19.99V
|
10mV
|
±0.3 % +1Digit
|
10MΩ
|
±250V
|
AC 220V
|
|
XL3114
|
3½
|
±199.9V
|
100mV
|
±0.3 % +1Digit
|
10MΩ
|
±500V
|
AC 220V
|
|
XL3115
|
3½
|
±500V
|
1V
|
±0.5 % +1Digit
|
10MΩ
|
±700V
|
AC 220V
|
|
