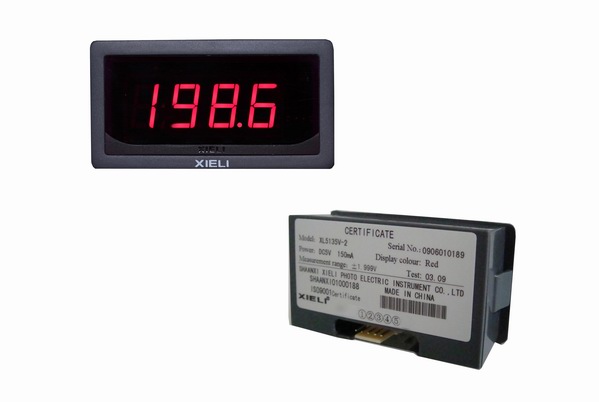

Introduction:XL5135(DC5V) 3½ AC Power Supply Measuring DC Digital Ammeter
Power Supply:DC5V
Dimension(mm):W79×H42×D25
Mounting hole(mm):76×39.5
Install method: Inlay
Maximum Count:1999(3 1/2 digit)
Display:Ultra-bright LED display
Color:Red,Blue,Green displays available
Character Height:15mm
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight:50~55g
Sample Frequency:400ms
|
Model
|
Digit
display
|
Full measurement
|
Resolution
|
Accuracy
|
Input impedance
|
Max.input value
|
Power Supply
|
|
XL5135A-1(DC/DC)
|
3½
|
±199.9μA
|
100nA
|
±0.5 % +1digit
|
1KΩ
|
±15mA
|
DC5V
|
|
XL5135A-2(DC/DC)
|
3½
|
±1.999mA
|
1μA
|
±0.5 % +1digit
|
100Ω
|
±50mA
|
DC5V
|
|
XL5135A-3(DC/DC)
|
3½
|
±19.99mA
|
10μA
|
±0.5 % +1digit
|
10Ω
|
±150mA
|
DC5V
|
|
XL5135A-4(DC/DC)
|
3½
|
±199.9mA
|
100μA
|
±0.5 % +1digit
|
1Ω
|
±500mA
|
DC5V
|
|
XL5135A-5(DC/DC)
|
3½
|
±1.999A
|
1mA
|
±0.5 % +1digit
|
0.1Ω
|
±3A
|
DC5V
|
|
XL5135A-6(DC/DC)
|
3½
|
±5.00A
|
10mA
|
±1% +1digit
|
0.01Ω
|
±6A
|
DC5V
|
|
