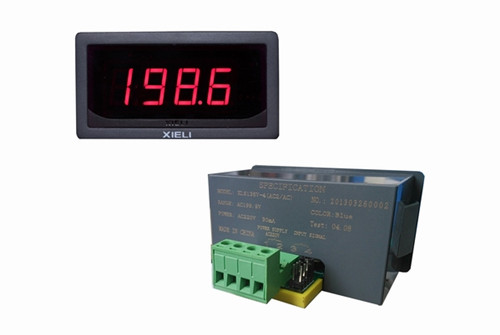

XL5135V Series (AC220V) Voltmeter
Power Supply:AC220V±10%
Dimension(mm):W79×H42×D63
Mounting hole(mm):76×39.5
Install method: Inlay
Maximum Count:1999(3 1/2 digit)
Display:Ultra-bright LED display
Color:Red,Blue,Green displays available
Character Height:15mm
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight:125~135g
Sample Frequency:400ms
|
Model
|
Digit display
|
Full measurement
|
Resolution
|
Accuracy
|
Input impedance
|
Max.input value
|
Power Supply
|
|
XL5135V-1(AC2/AC)
|
3½
|
AC199.9mV
|
100μV
|
±0.5 % +3Digit
|
10MΩ
|
AC10V
|
AC 220V
|
|
XL5135V-2(AC2/AC)
|
3½
|
AC1.999V
|
1mV
|
±0.5% +3Digit
|
100KΩ
|
AC35V
|
AC 220V
|
|
XL5135V-3(AC2/AC)
|
3½
|
AC19.99V
|
10mV
|
±0.5% +3Digit
|
4.5MΩ
|
AC250V
|
AC 220V
|
|
XL5135V-4(AC2/AC)
|
3½
|
AC199.9V
|
100mV
|
±0.5% +3Digit
|
10MΩ
|
AC400V
|
AC 220V
|
|
XL5135V-5(AC2/AC)
|
3½
|
AC300V
|
1V
|
±1 % +3Digit
|
10MΩ
|
AC500V
|
AC 220
|
|
